The Mini Industrial Gigabit Ethernet Switch is designed for reliable industrial network connectivity, featuring three 10/100/1000Base-T RJ45 ports and one 1000Base-X SFP port for flexible copper and fiber communication. Its redundant dual power inputs support a wide 11–56VDC range, providing greater flexibility for industrial power systems. The switch supports Full/Half-Duplex operation, auto-negotiation, Auto MDI/MDIX, IEEE 802.3az Energy Efficient Ethernet, 9K-byte Jumbo Frames, and Store-and-Forward switching for reliable data transmission. The compact fanless aluminum housing with IP40 protection, DIN-Rail installation, and a wide -40°C to +80°C operating temperature range makes it suitable for demanding industrial environments, including power, water infrastructure, rail transit, traffic monitoring, renewable energy, and building automation.

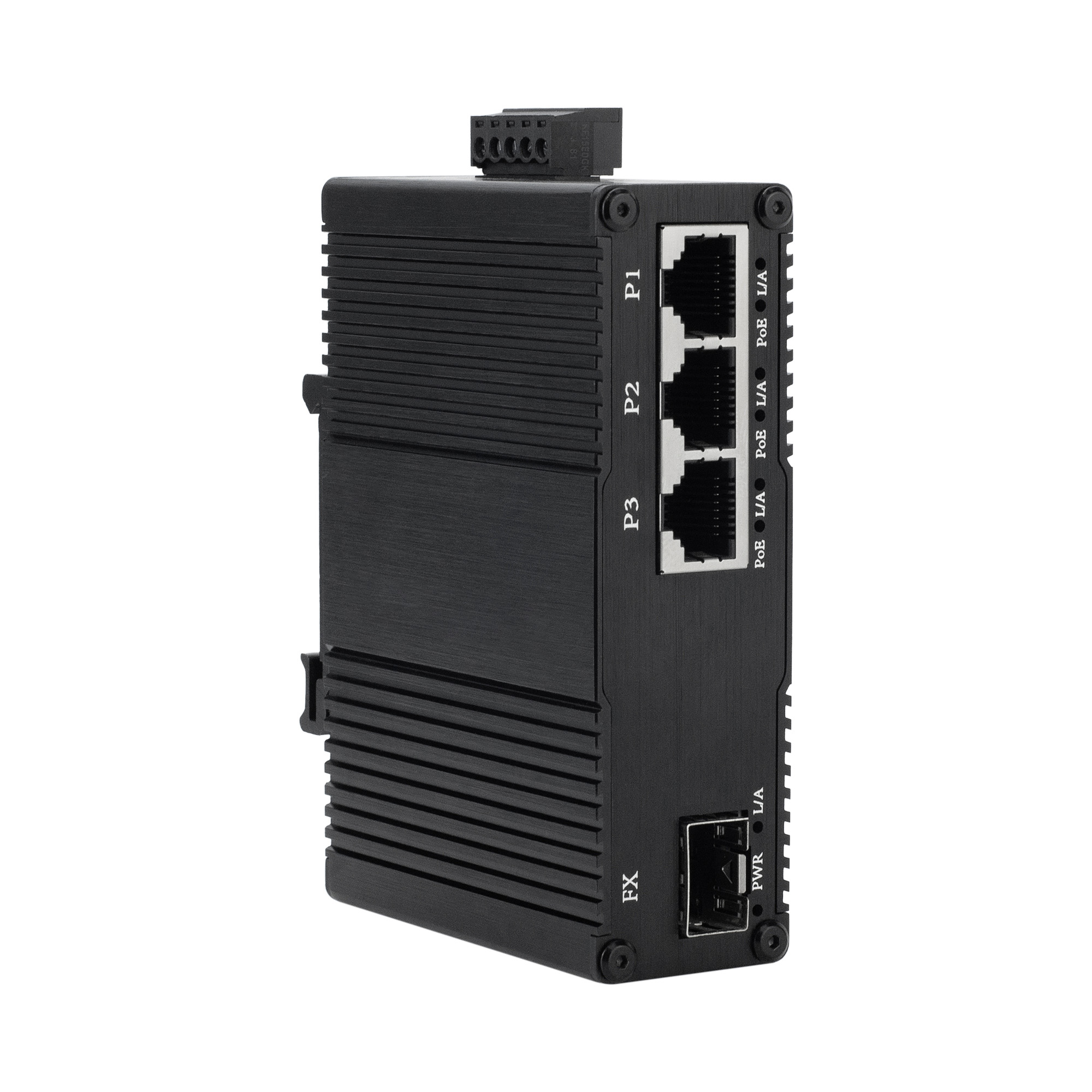

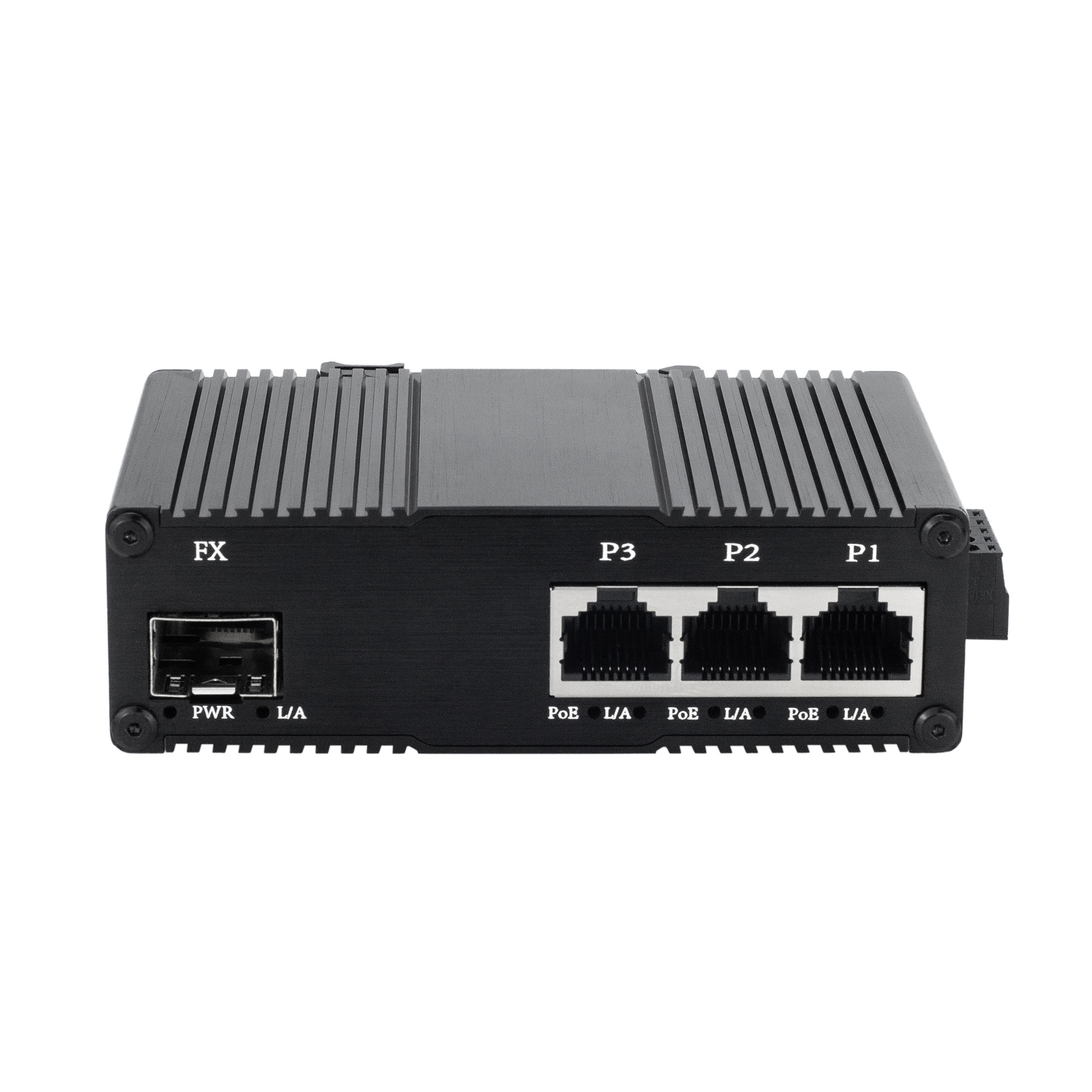

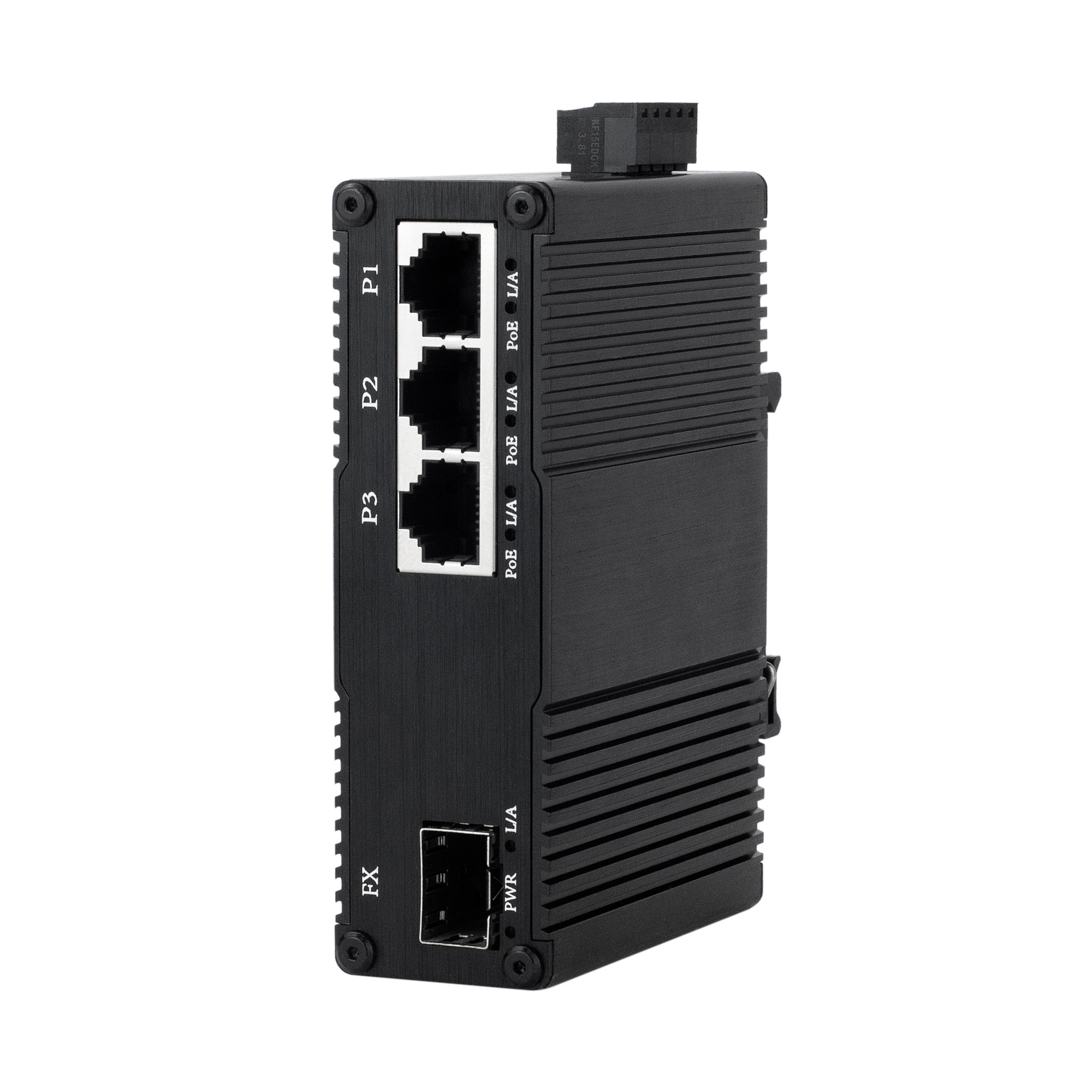

- 3 × 10/100/1000Base-T Gigabit Ethernet RJ45 ports
- 1 × 1000Base-X SFP port for fiber connectivity
- Redundant dual 11–56VDC wide-range power input
- Supports Full/Half-Duplex, Auto-Negotiation, and Auto MDI/MDIX
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Store-and-Forward switching
- Supports 9K-byte Jumbo Frames
- Compact, fanless aluminum housing with IP40 protection

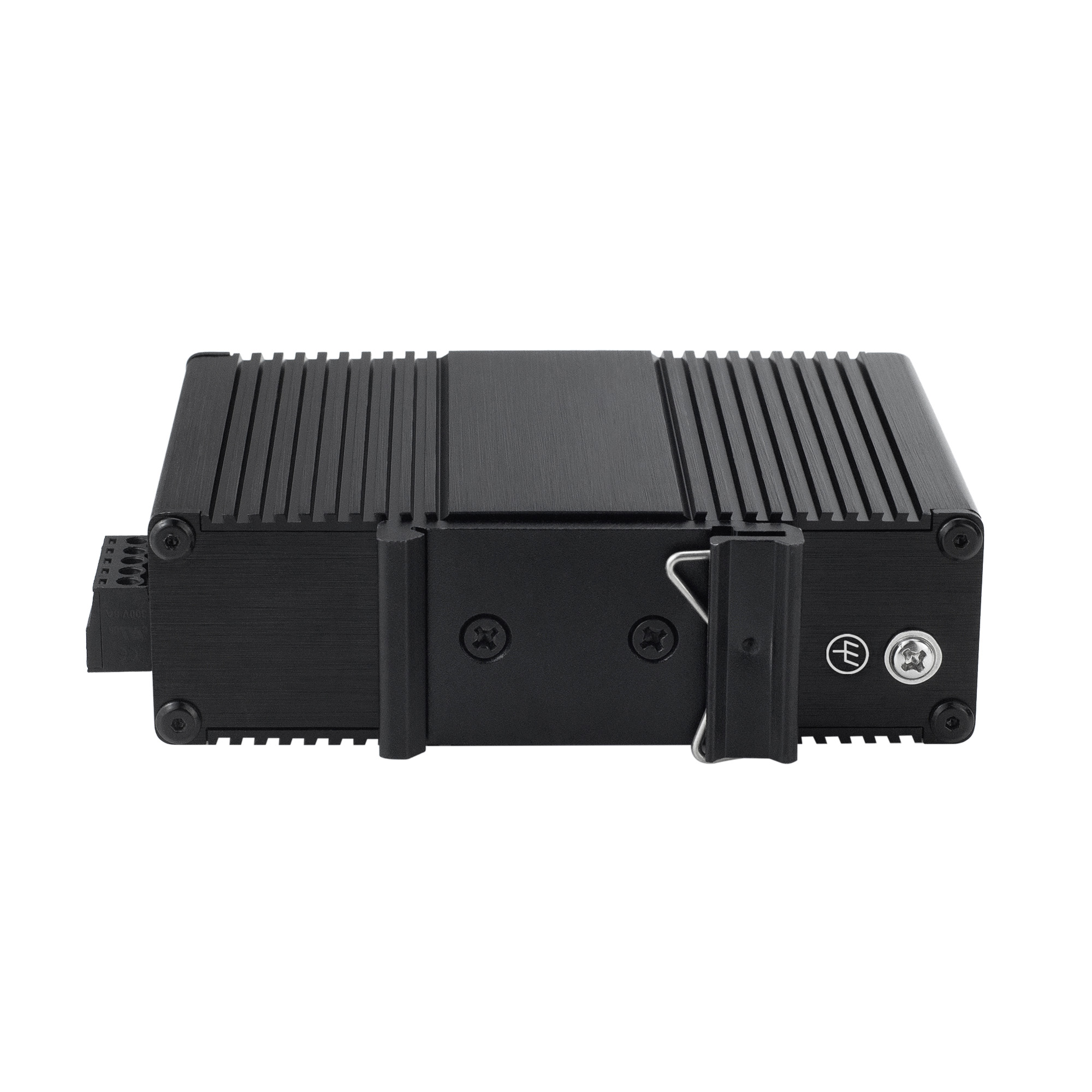

- DIN-Rail installation
- -40°C to +80°C operating temperature
- Designed for industrial Ethernet, fiber networking, power, transportation, renewable energy, and automation applications
